GODIAG BMW EWS-4.3 & 4.4 9S12(2L86D) for XPROG-M or AK90 or R270 Programmer
Item No. SK195-B
Read & write data dump from EWS Immobilizer<br />Can work with X-PRO, AK90, or R270 programmer<br />Without soldering any wires, just on board
Product Description
GODIAG BMW EWS-4.3 & 4.4 9S12(2L86D) for XPROG-M or AK90 or R270 ProgrammerProduct Features:
Read & write data dump from EWS Immobilizer
Can work with "XPROG-M, AK90, or R270" programmer
Without soldering any wires, just on board

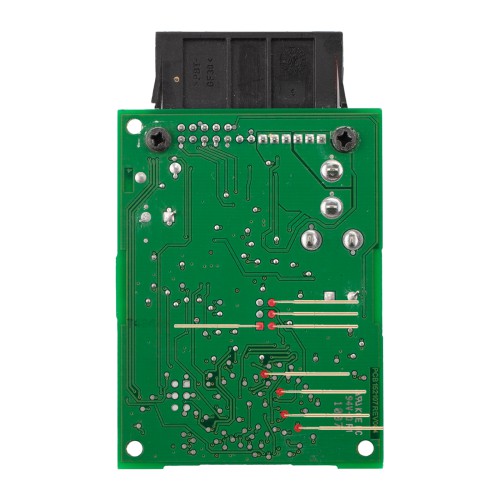

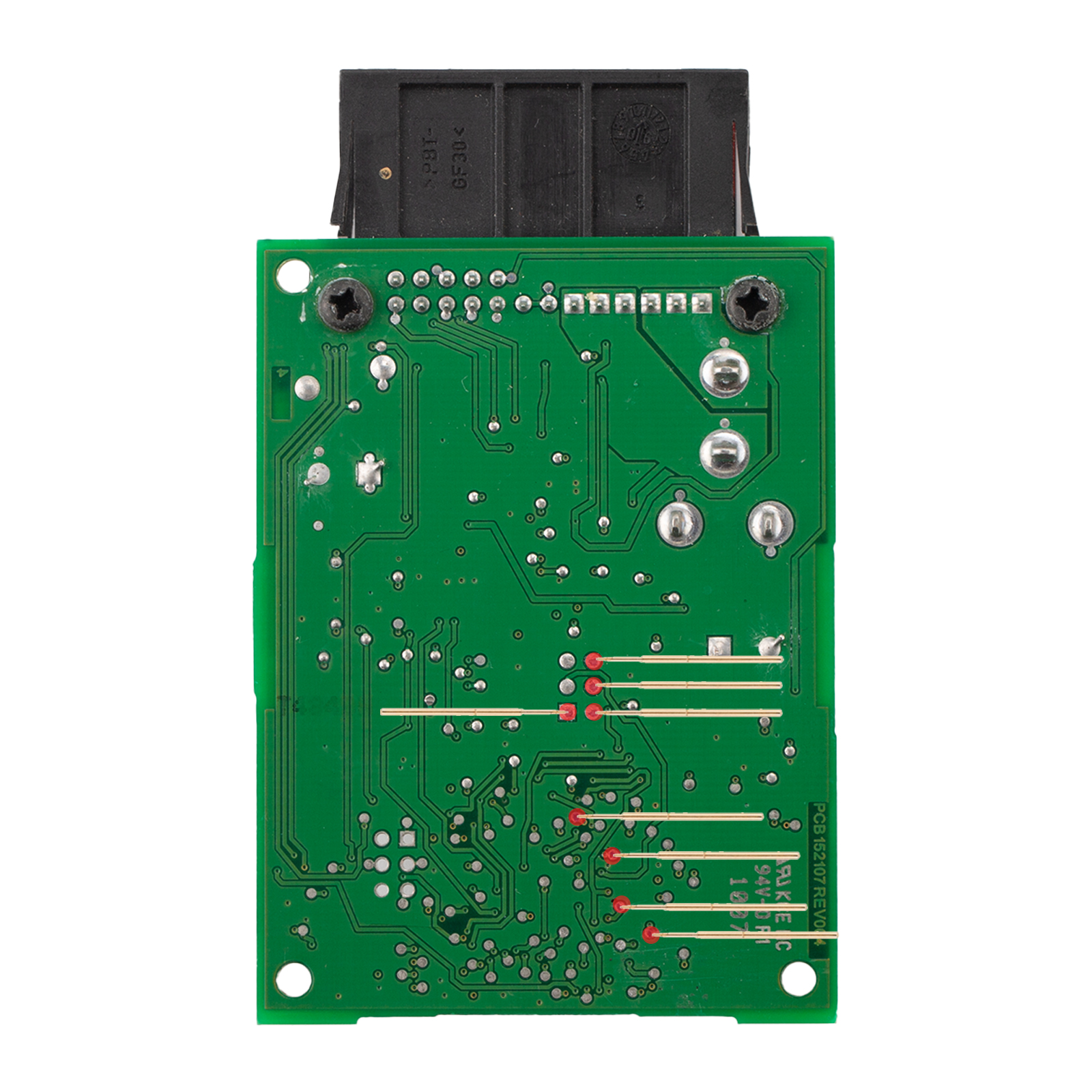

Note: Before reading, please use sandpaper to scrape glue off the circuit in back of EWS.

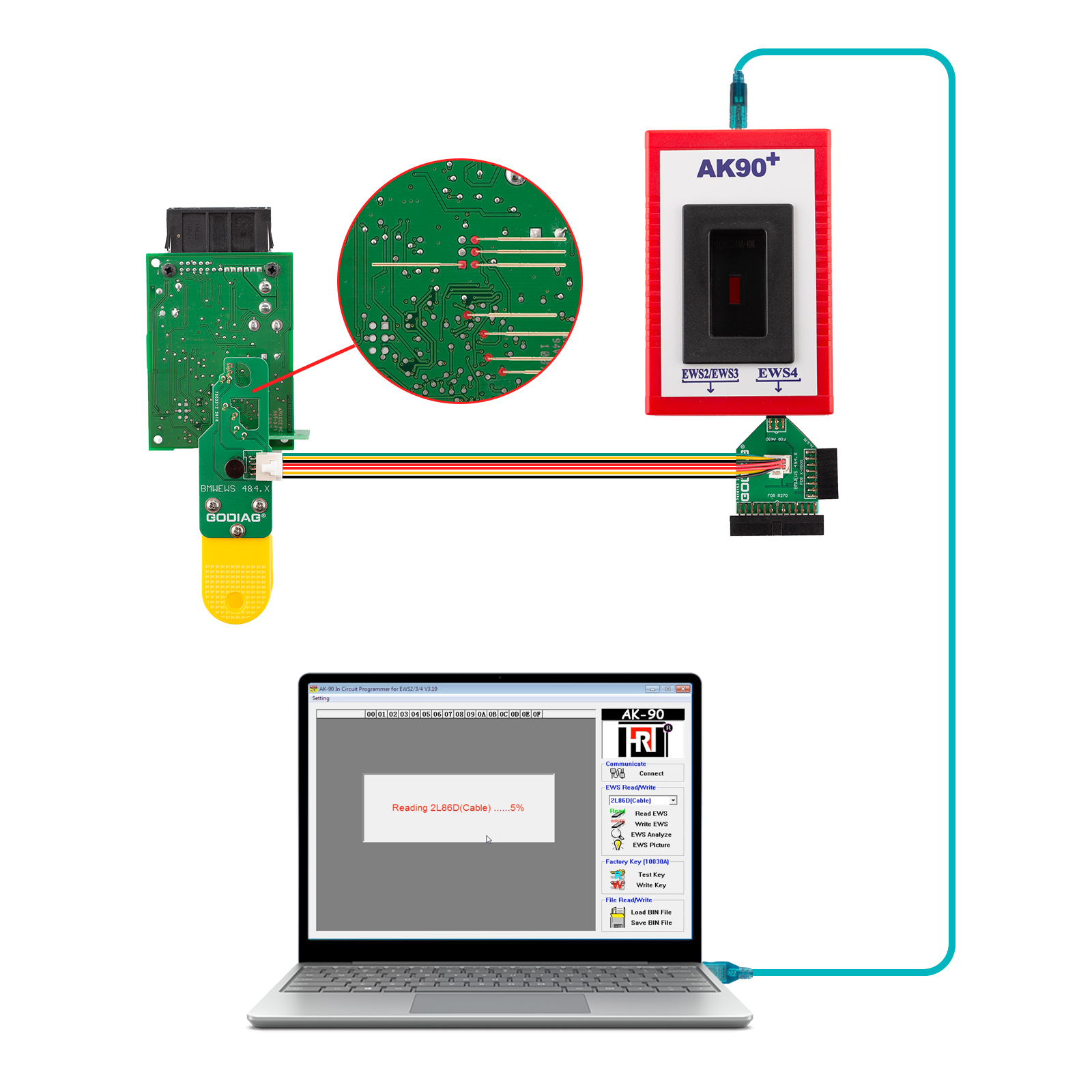

Work with AK90 programmer:
Must be with the small circuit on reading:
Select "2L86D” under AK90 software

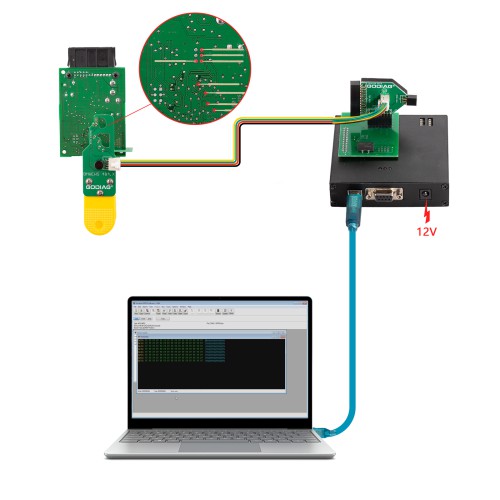

Work with XPROG-M programmer:
Work with XPROG-M programmer:
No need of the small circuit on reading
Select "MC9S12-EEPROM-secured" family under "MCU/MPU" in the software.

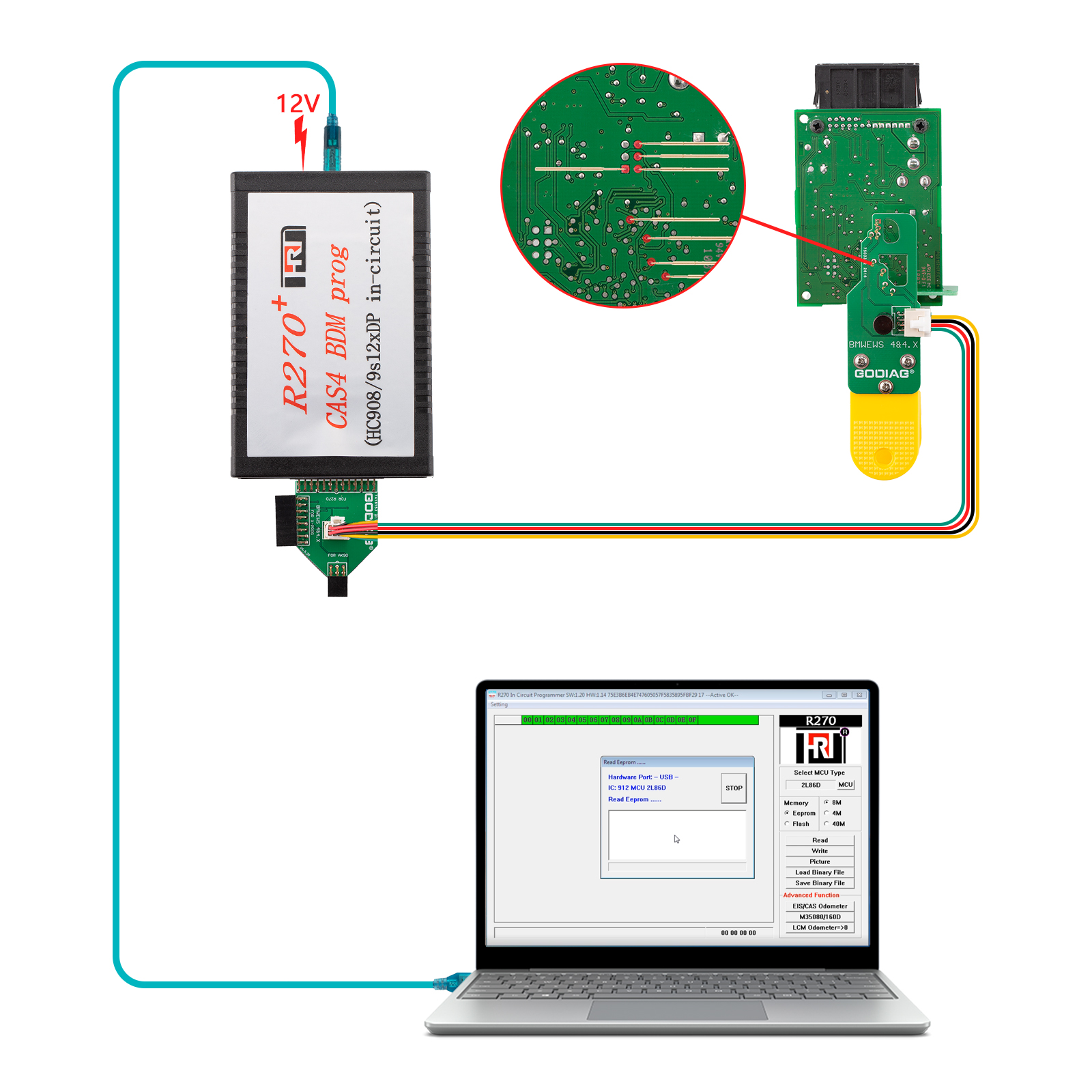

Work with R270 programmer:
Work with R270 programmer:
Must be with the longer cable
Select “ 2L86D” under the selection of software and select reading "EPROM or FLASH”as you wish.

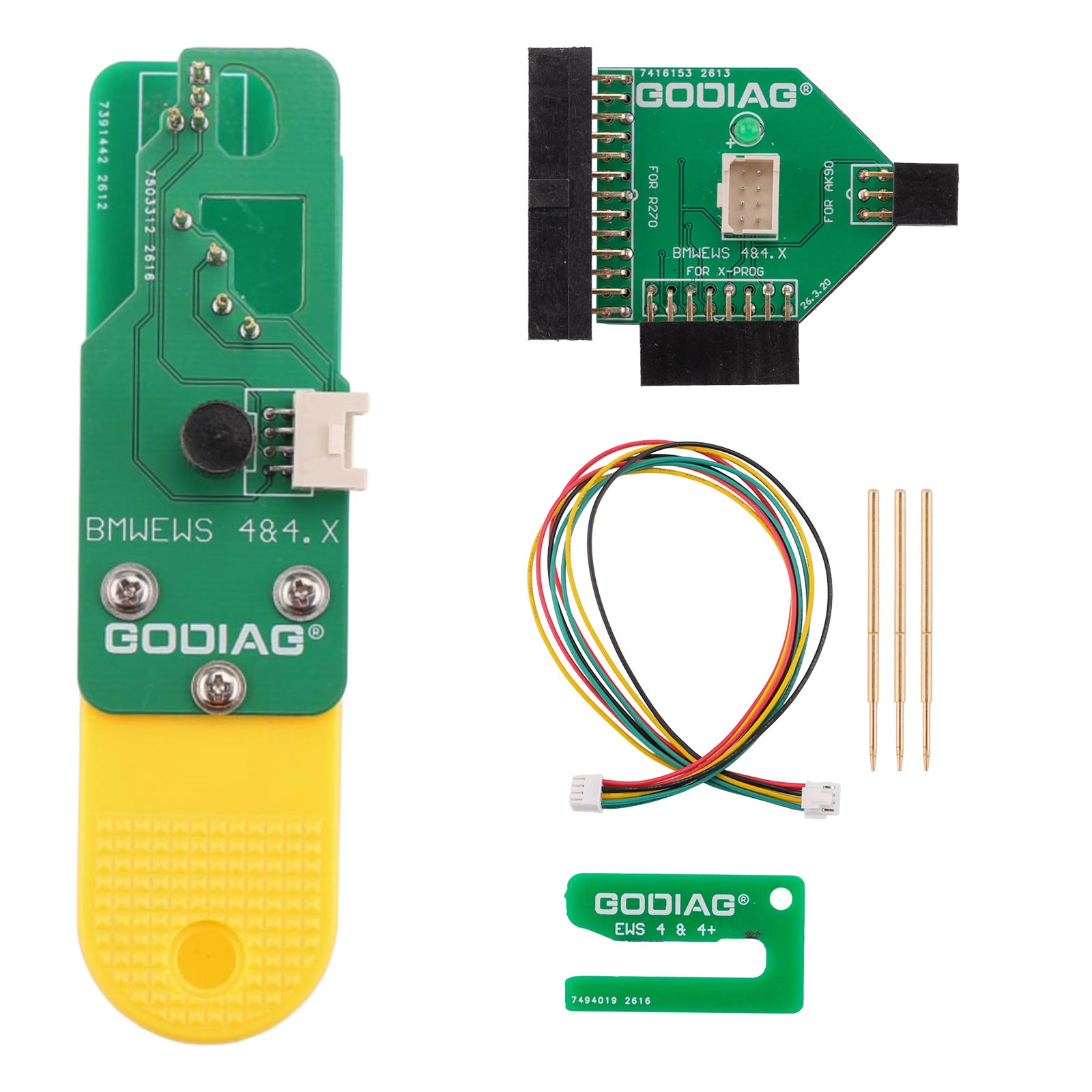

Package includes:
Package includes:

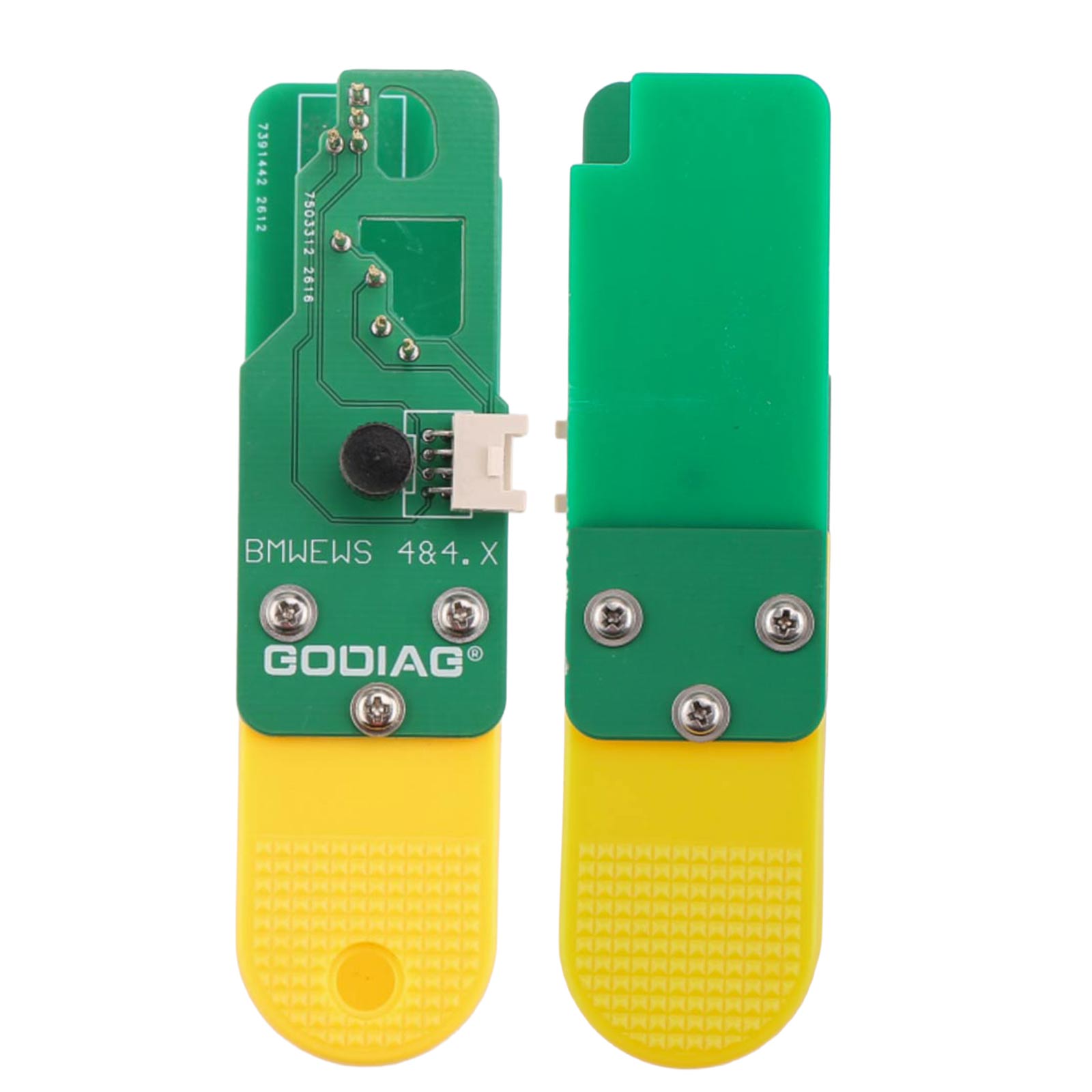

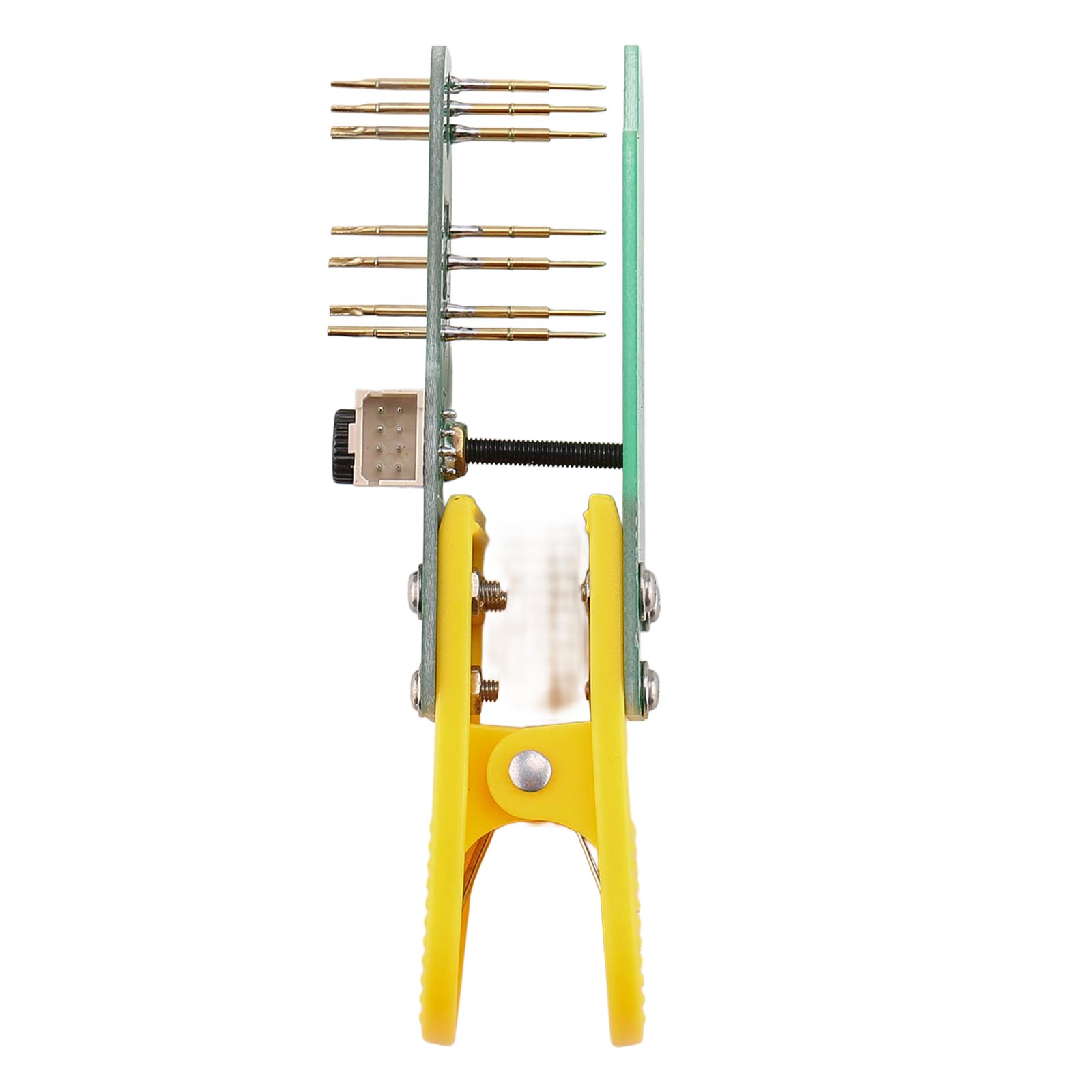

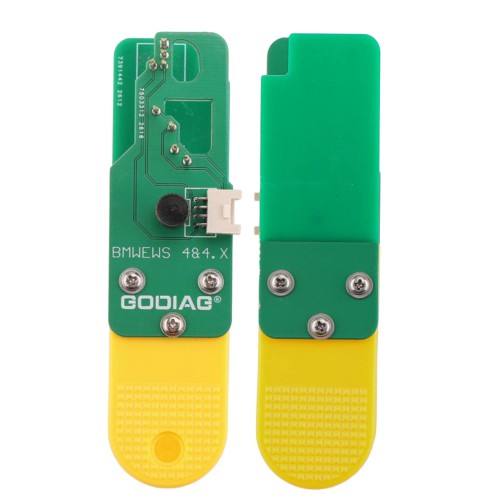

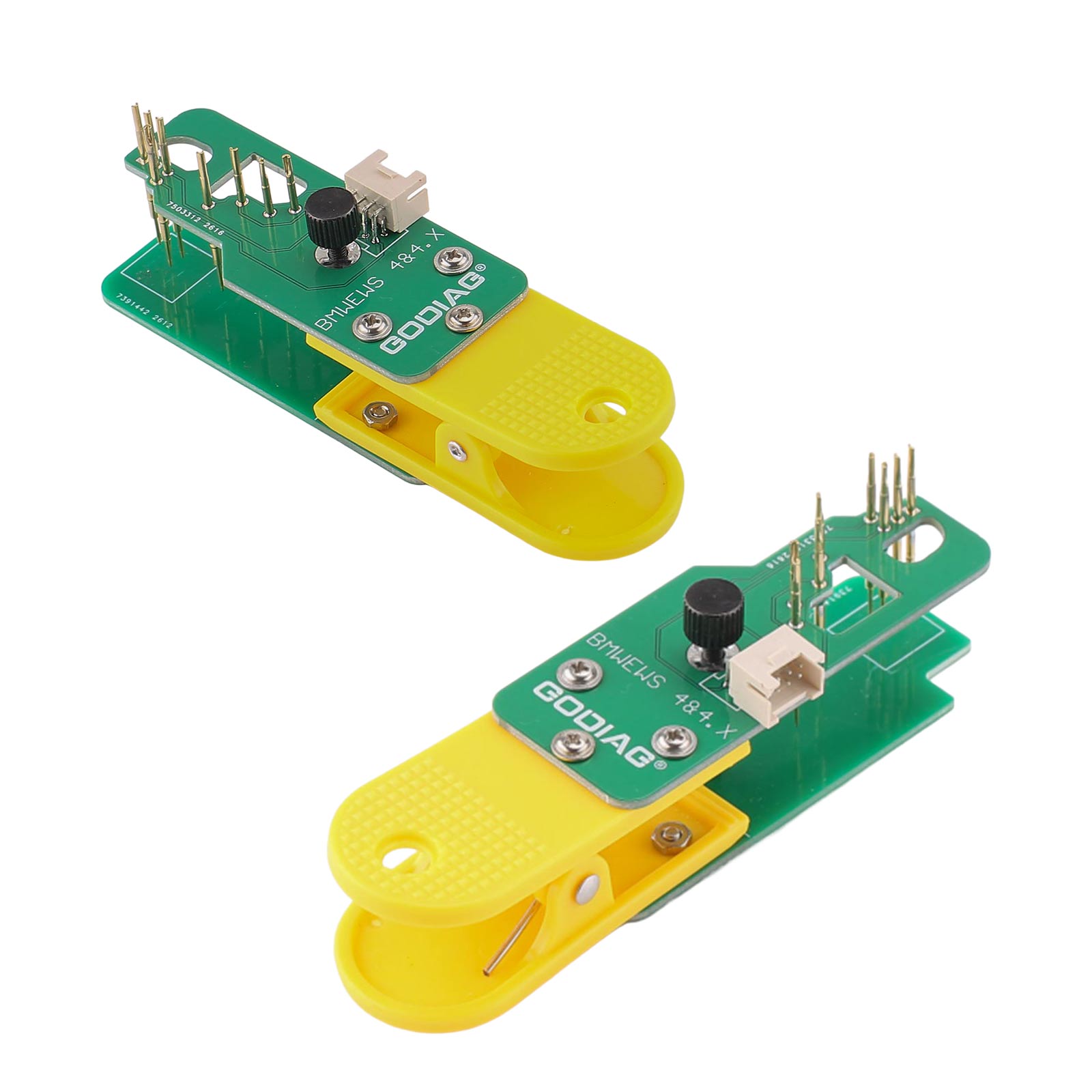

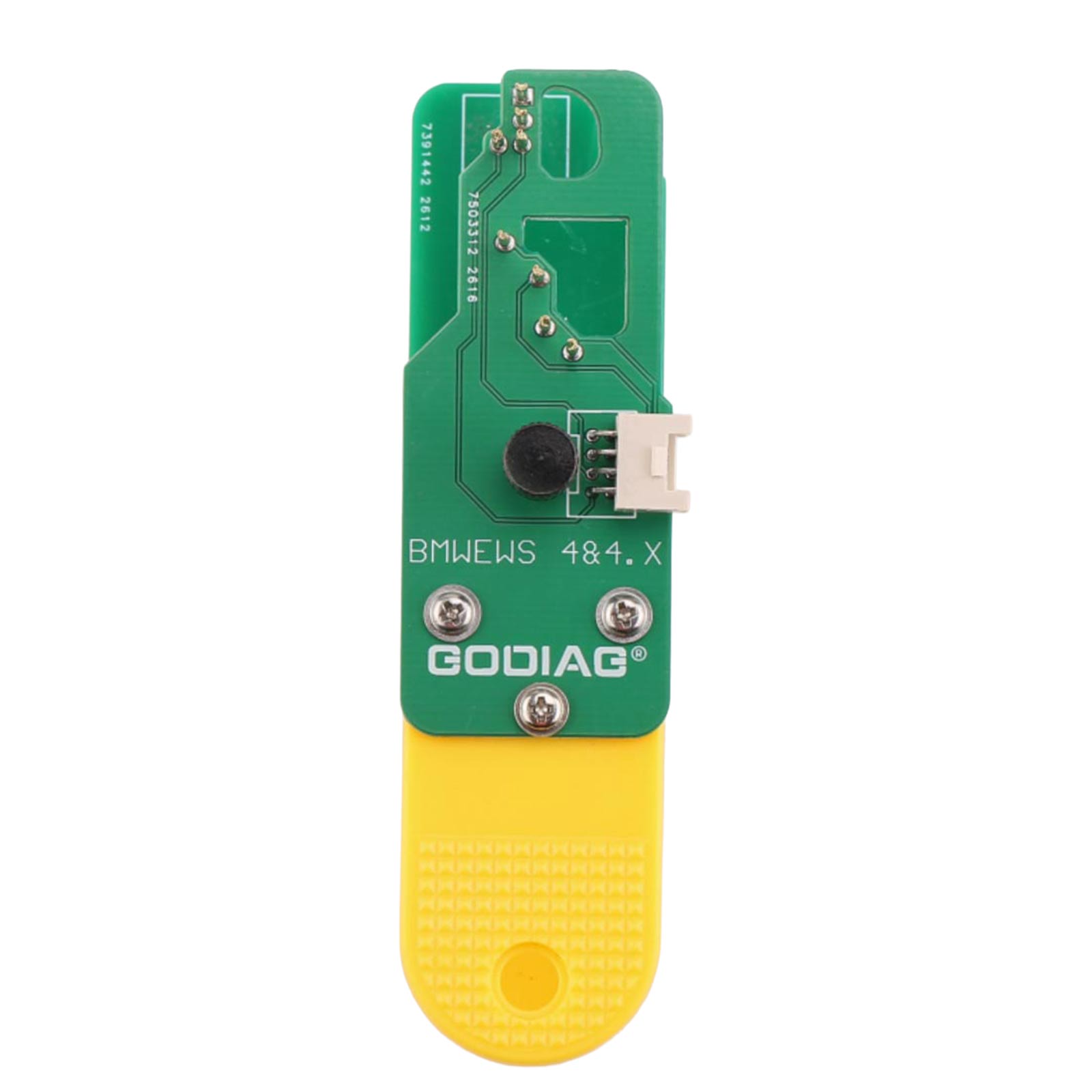

1pc x BMWEWS-4.3 & 4.4 9S12(2L86D) clip
1pc x adpter
1pc x ribbon cable
1pc x board holder
3pcs x spare probes
1pc x adpter
1pc x ribbon cable
1pc x board holder
3pcs x spare probes
Specification
| Weight: | 0.1KG ( 0.22LB ) |
| Package: | 14.4cm*8.5cm*3.4cm ( Inch: 5.67*3.35*1.34 ) |
